ULTRASONIC THICKNESS GAUGE

LS211 Ultrasonic Thickness Gauge

Non-destructive for metal, glass, ceramics and plastics

With four kinds of probes, measuring a wide range of materials
Two measurement modes: QC Mode/Statistics Mode
Large measuring range: 0.8mm-600mm and high-sensitive dual-crystal probe
Automatic Gain switchable

LS211 ultrasonic thickness gauge uses the ultrasonic pulse reflection principle for thickness measurement. The instrument can be equipped with four types of probes: standard probe, micro-diameter probe, coarse crystal probe and high temperature probe, and is professionally used for thickness measurement of metals (such as steel, aluminum, copper, etc.), plastics, ceramics, glass and other materials that can transmit ultrasonic waves. The instrument adopts professional timing chip design, the resolution is up to 0.001mm.

Application

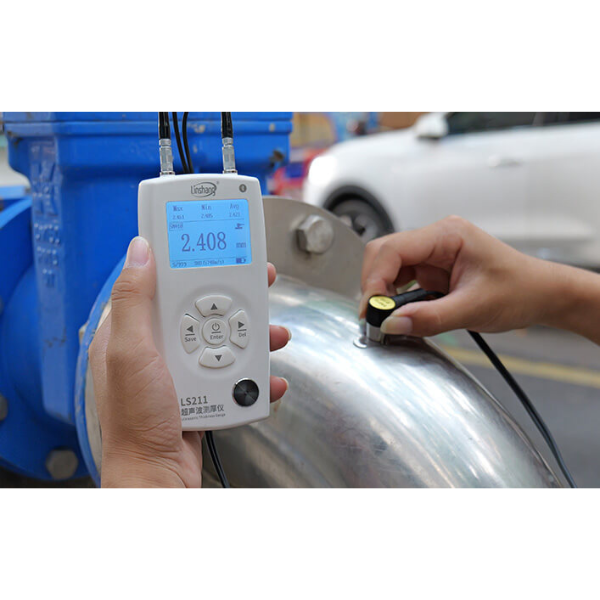

In many industries, It is essential to mesure the wall thickness to confirm the condition of the material for the normal running of the items or structure safety. LS211 ultrasonic thickness meter can be widely used in testing the thickness of various accessories or metallic structure to check them whether to be repaired or changed such as ships, tanks, pipes or steel structure. The gauge is applicable for petroleum, chemical, metallurgical, shipbuilding, aviation and aerospace various fields.

LS211 Parameter

Resolution: 0.8-10mm:0.001mm,10-100mm:0.01mm,100-600mm:0.1mm

Sound Velocity Range: 1000~9999m/s

Probe: 5MHz φ10 Standard Probe

Display: 240 * 160 dot matrix LCD

Unit: mm/inch

Power Supply: 2pcs of 1.5V AA alkaline battery

Host Size: 142 * 72 * 28 mm

Weight: About 230g

Operation Temperature Range: -10~60℃，0~85%RH（No condensation）

Storage Temperature Range: -10~60℃，0~85%RH（No condensation）

Standard Probe Parameter

Probe Model: 5MHZφ10

Minimum measuring area: φ10mm

Probe size: φ18*26mm

Measuring   Range(45#steel): 0.8-350mm

Accuracy
(H is the standard value): H＜10mm: ±0.05mm H≥10mm: ±0.5%H

Pipe measurement lower limit (45# steel): φ20*3mm

Exposure temperature: -10~60℃

Application: Measure of conventional workpieces
