CAR PAINT METER

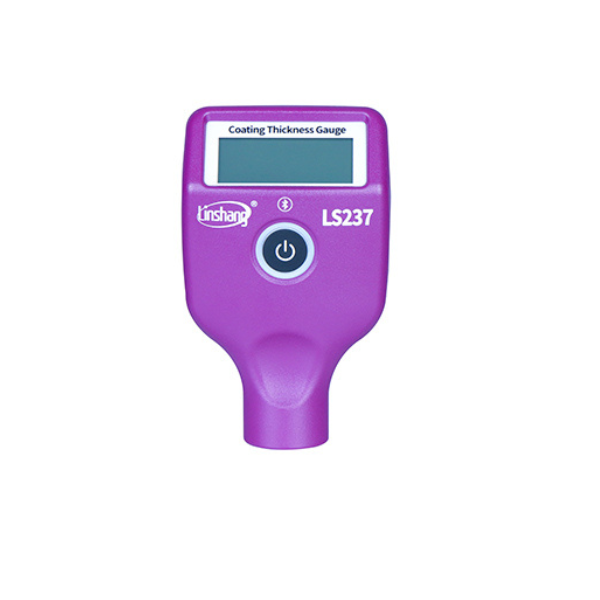

LS237 car paint meter

Professional identification of ferrous putty

Three-color and rotatable display screen
Identify iron galvanized body
Type-C interface charging, ultra-low power consumption
Switchable between five languages

LS237 car paint meter is specialized for car paint thickness inspection. The instrument can not only measure the paint thickness above the ferrous and aluminum materials, identify the non-metallic shell, but also can intelligently identify the ferrous putty and ferrous galvanized layer. LS237 automotive paint meter adopts three-color backlighting as well as three-color indicator display, according to the different paint thickness of the screen and the button displays different color light. LS237 screen is rotatable, facilitating easier reading. LS237 paint film meter also adopts rechargeable lithium battery power supply, ultra-low power consumption. The instrument also has Bluetooth function, equipped with APP, support car inspection report export and sharing.

Parameters

Probe tip: Ruby

Measurement principle: Fe: Hall effect / Al: Eddy current

Probe type: Integrated

Measuring range: 0.0-5000μm

Resolution: 0.1μm/1μm/10μm

Accuracy: 0-3000μm: ≤±(3%H+2μm), H is the standard value
3000-5000μm: ≤±(5%H+2μm), H is the standard value

Unit: μm / mil

Measuring interval: 0.5s

Minimum measuring area: Ø = 25mm

Minimum radius of curvature: Convex: 5mm / Concave: 25mm

Minimum substrate thickness: Fe:0.2mm / Al:0.05mm

Display: 128×48 dot matrix LCD

Power supply: Rechargeable lithium battery 3.7V@1200mAh

Range of working temperature:-20℃-50℃

Storage temperature range:-20℃-60℃

Host size:101*62*28 mm

Weight (including battery): 76g

Data transfer: Bluetooth
