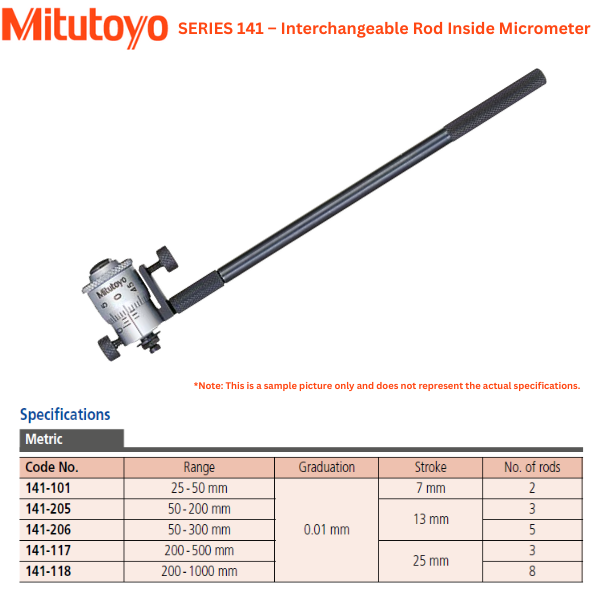

MITUTOYO INSIDE MICROMETER 141-206, 50-300 mm

Interchangeable Rod Inside Micrometer

Mitutoyo Code No.141-106

Range: 50 - 300 mm

Graduation: 0.01 mm

Stroke: 13 mm

Number of rods: 5

Spindle Feed Error: ±3 μm

SERIES 141 – Interchangeable Rod Inside Micrometer

• Wide range of inside diameter measurements possible by combining one or more interchangeable rods.

• Each interchangeable rod is marked with its measuring range.

• For models supplied with more than one interchangeable rod, the full measuring range is achieved by combining spacing collars with the rods.

• Both micrometer head and rods are satin-chrome finished throughout.

• A handle extension that screws into the fixed handle on the micrometer head enables the head to be inserted deep into a hole.

• The sleeve is rotated to adjust the index line position when setting to a length standard.
