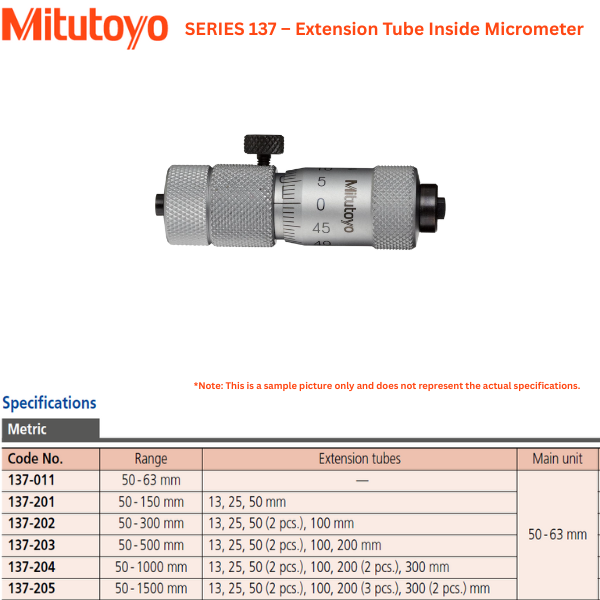

MITUTOYO INSIDE MICROMETER 137-011, 50-63 mm

Extension Tube Inside Micrometer

Mitutoyo Code No.137-011

Range: 50 - 63 mm

Graduation: 0.01 mm

Stroke: 13 mm

Extension Tubes: N/A

Spindle Feed Error: ±3 μm

SERIES 137 – Extension Tube Inside Micrometer

• Wide range of inside measurements possible by combining extension tubes with the micrometer head.

• The sleeve is rotated to adjust the index line position when setting to a length standard.
