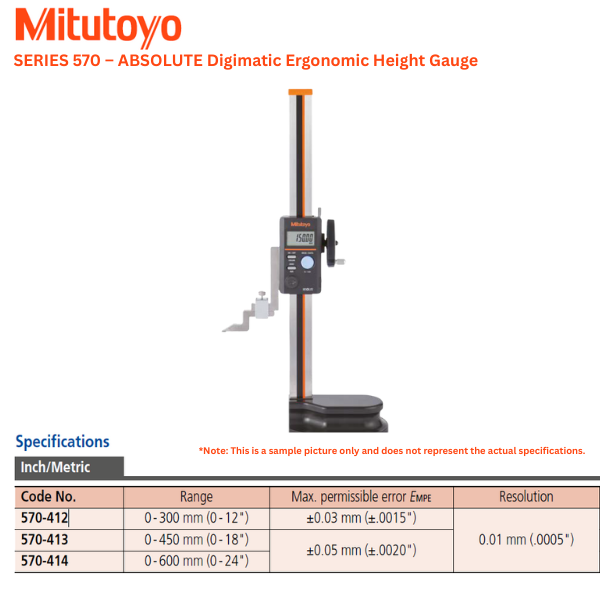

MITUTOYO DIGITAL HEIGHT GAUGE 570-412, 0-300 mm

SERIES 570 – ABSOLUTE Digimatic Ergonomic Height Gauge

Mitutoyo Code No.570-412

Range: 0 - 300 mm /12”

Resolution: 0.01 mm /0.0005”

Battery: SR44

Maximum Permissible error: ±0.03 mm / 0.0015”

SERIES 570 – ABSOLUTE Digimatic Ergonomic Height Gauge

• Allows smooth elevation by the slider adjustment wheel, which is the same type used on the well-established double-column height gauge.

• Large slider-clamp lever ensures positive and accurate clamping action.

• The 12 mm high character display (20% bigger than the previous model) – makes it easier to read the measured values.

• Due to the built-in ABSOLUTE scale function, origin setting is not required each time power is turned ON.
