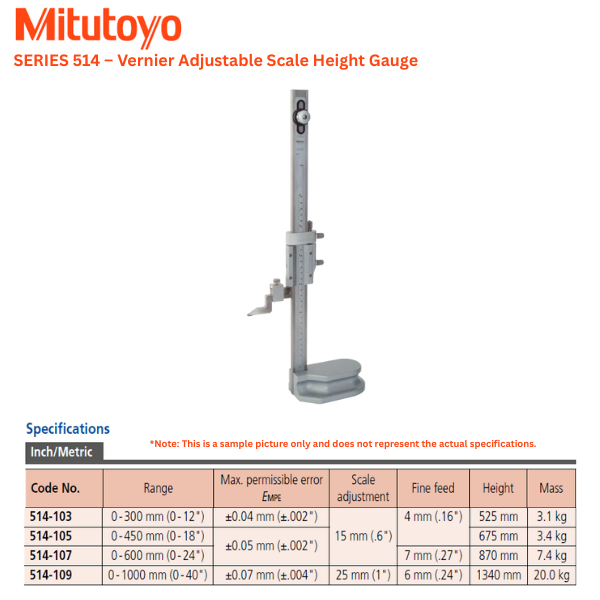

MITUTOYO VERNIER HEIGHT GAUGE 514-107, 0-600 mm

SERIES 514 – Vernier Adjustable Scale Height Gauge

Mitutoyo Code No.514-107

Range: 0 - 600 mm /24”

Resolution: 0.02 mm /0.001”

Maximum Permissible error: ±0.05 mm / 0.002”

Scale adjustment: 15 mm

Fine feed: 7 mm

SERIES 514 – Vernier Adjustable Scale Height Gauge

• Fits comfortably in the hand and moves easily on the surface plate.

• The main scale slides and clamps within the column for quick and convenient zero-setting.

• Large locking screws are used both for the slider and fine adjustment clamps to make clamping easy and secure.

• Operability of slider has been improved.

• Large mainscale engraving for fatigue-free working.

• Carbide-tipped scriber 07GZA000 is provided as a standard accessory. (Scriber clamp 05GZA033).
